What makes a fiberglass manhole cover a direct replacement for cast iron is not just the weight saving—it's the complete absence of scrap value. In remote sewer networks and unmanned pumping stations, cast iron lids disappear. An FRP cover removes the incentive for theft while still meeting the load class for the location. For non‑metallic access covers in hydrogen sulfide‑rich environments, the material advantage is just as decisive: there is no iron to convert to ferrous sulfide, no concrete matrix to spall from acid attack. The cover generally remains dimensionally stable and crack‑free through years of exposure to biogenic H₂S above the water line. Corrosion resistance is commonly verified under ASTM D543.

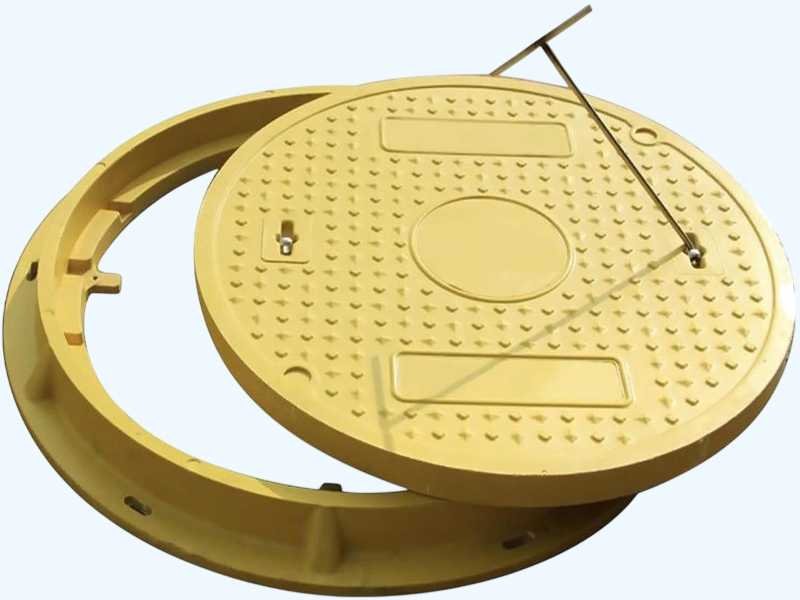

These FRP chamber covers are molded as a single piece with integral stiffening ribs on the underside. A grit‑coated top surface provides slip resistance in wet conditions without the need for additional inserts. The standard range typically starts at 600 mm diameter for round covers, scaling up to rectangular formats such as 900 × 600 mm and 1,200 × 800 mm for larger valve chambers, with custom dimensions available. Clear opening is typically 50 mm less than cover diameter to suit standard frame seats. Because they are non‑conductive, electrical utilities commonly specify them for transformer pit access and cable joint chambers in substations—eliminating the bonding and grounding measures that a metal lid would require.
Load classes follow EN 124, with A15 for pedestrian areas, B125 for light vehicles, and C250 for slow‑moving trucks, depending on cover depth and rib design. Weight for a 600 mm round cover typically ranges from 12–18 kg, compared to 35–45 kg for equivalent cast iron. Resin systems include isophthalic polyester as standard, with vinyl ester available for aggressive H₂S or chemical exposure. Surface finish is integrally bonded silica grit for anti‑slip performance, with gel‑coat options for UV stability. Installation is a direct lift‑and‑drop into an existing frame seat or a pre‑cast concrete ring. No lifting equipment is typically required for common sizes—one person can remove a 600 mm cover for a quick inspection, which helps keep routine sewer and valve checks on schedule. For related infrastructure access solutions, see FRP Access Systems and FRP Drainage Applications.
Standard Dimensional Parameters
Commonly available round and rectangular cover dimensions, thicknesses, and load‑class references for molded FRP manhole covers are listed below. Custom sizes, non‑standard shapes, and project‑specific load ratings are available on request.
| Parameter | Commonly Available Specification |
|---|---|
| Round Cover — DN500 | Cover OD approx. 550 mm; frame OD approx. 650 mm |
| Round Cover — DN600 | Cover OD approx. 660 mm; frame OD approx. 760 mm |
| Round Cover — DN700 | Cover OD approx. 760 mm; frame OD approx. 860 mm |
| Round Cover — DN800 | Cover OD approx. 860 mm; frame OD approx. 960 mm |
| Round Cover — DN900 | Cover OD approx. 960 mm; frame OD approx. 1060 mm |
| Round Cover — DN1000 | Cover OD approx. 1060 mm; frame OD approx. 1160 mm |
| Round Cover Thickness — Light Duty (A15) | 30–40 mm |
| Round Cover Thickness — Standard Duty (B125) | 40–50 mm |
| Round Cover Thickness — Heavy Duty (C250/D400) | 50–70 mm |
| Rectangular Cover — Typical Sizes | 300×300 mm, 400×400 mm, 500×500 mm, 600×600 mm, 700×700 mm, 800×800 mm, 900×600 mm, 1000×500 mm, 1200×800 mm |
| Rectangular Cover Thickness | 30–70 mm, depending on load class |
| Frame Height | 60–100 mm; wall thickness 8–12 mm |
| Load Classes (EN 124) | A15 (pedestrian), B125 (light vehicle), C250 (slow‑moving truck), D400 (highway) |
| Surface Finish | Integrally molded grit‑coated anti‑slip surface; optional gel‑coat |
| Typical Weight (600 mm round) | 12–18 kg |
Custom DN sizes, rectangular formats up to 1200×800 mm, and load ratings up to D400 are available on request. For load‑class verification, slip‑resistance test reports, and chemical compatibility data, see the referenced ASTM D543 performance figure above.
Proven in Field
"Every cast‑iron manhole cover in our sewer network had either been stolen or rust‑welded shut within three years. We replaced them with FRP covers three years ago—no thefts, and the field crews can open any chamber in under a minute with a standard lifting key. The H₂S environment has not degraded the material."
— Sewer Network Access Upgrade
Discuss Your Access Cover Project Requirements
WayTong supplies FRP manhole covers in standard round and rectangular formats with EN 124 load ratings from A15 to C250. Contact our technical desk for chamber‑specific sizing, load‑class verification, and project‑specified resin formulations.
Discuss Project RequirementsThese covers integrate into the WayTong FRP Infrastructure portfolio alongside drainage channels, trench covers, and chamber rings. For complete mechanical and corrosion performance data, see the ASTM Standards Summary.
