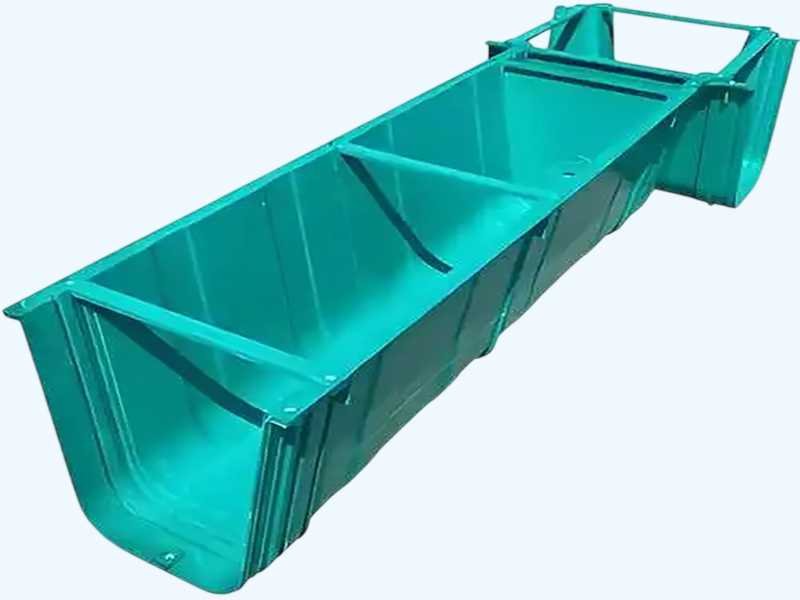

A fiberglass irrigation flume starts with a factory‑molded shell whose inner surface is a single continuous gel‑coat, free of the trowel marks and bug holes common in poured concrete. That surface delivers a Manning's n around 0.009–0.010, which lets the design engineer specify a shallower, narrower cross‑section for the same flow rate—saving on excavation and land take. Unlike concrete linings, the FRP shell generally does not carbonate or react with acidic soil water, and the UV‑stabilized resin retains its gloss and hydraulic smoothness through year‑round sun exposure. For agricultural FRP water channel schemes spanning tens of kilometres, that surface consistency translates into predictable flow rates at every turnout. Long‑term outdoor durability may be evaluated through accelerated weathering methods such as ASTM G154.
On the logistics side, FRP canal lining sections ship as nesting shells that stack on a flatbed truck. A 6‑metre module typically weighs around 40–60 kg, light enough for two labourers to carry across a prepared earth bench without a crane. The sections join with a simple bell‑and‑spigot connection sealed with a chemically compatible adhesive or EPDM gasket, forming a watertight joint that accommodates minor ground settlement. Installation crews commonly lay 100 linear metres per day with a small team, which keeps canal‑rehabilitation shutdowns measured in weeks rather than months. The material's low thermal expansion coefficient relative to plastics generally means fewer expansion joints over long runs. Standard widths include 300, 450, 600, and 900 mm internal base width, with depths from 300–1,200 mm, depending on flow requirements. Section lengths are commonly 3 m or 6 m, with custom lengths available to 12 m for straight runs. Service temperatures typically range from −40°C to 80°C continuous, with higher thresholds available depending on resin selection.
Channels are bedded on a sand or fine‑gravel levelling course; no formwork or curing time is required. Turnout gates, offtake weirs, and check structures can be bolted directly to the channel walls using 316 stainless steel fasteners. Resin systems include isophthalic polyester with UV‑stabilized gel‑coat as standard, with vinyl ester available for aggressive soil chemistry. Weight per metre typically ranges from 7–12 kg/m, depending on cross‑section dimensions. For related water management and infrastructure solutions, see FRP Drainage Systems and FRP Drainage Applications.
Standard Dimensional Parameters
Commonly available sectional dimensions for U‑channel flume sections and compatible cover panels are listed below for reference. Custom cross‑sections, wall thicknesses, and project‑specific hydraulic profiles are available on request.
| Parameter | Commonly Available Specification |
|---|---|
| Channel — Small (Internal Width × Height) | 200×150 mm, 300×200 mm, 300×250 mm |
| Channel — Small Wall Thickness | 3–4 mm |
| Channel — Medium (Internal Width × Height) | 400×300 mm, 400×350 mm, 500×350 mm, 500×400 mm |
| Channel — Medium Wall Thickness | 4–5 mm |
| Channel — Large (Internal Width × Height) | 600×400 mm, 600×450 mm, 800×500 mm, 800×600 mm, 1000×600 mm, 1000×700 mm |
| Channel — Large Wall Thickness | 5–8 mm |
| Standard Section Length | 3 m, 4 m, 6 m; custom up to 12 m |
| Joint Type | Bell‑and‑spigot with EPDM gasket or adhesive seal |
| Cover Panel — Flat | Width matching channel top width; thickness 3–5 mm |
| Cover Panel — Corrugated | Width matching channel top width; wave height 20–30 mm; thickness 2.5–3 mm |
| Saddle Support | FRP or 316 stainless steel; matching channel outer profile; wall 4–5 mm |
Additional channel widths up to 1000 mm, deeper cross‑sections, and custom turnout gate configurations are available for project‑specific requirements. For hydraulic profiling data, Manning's n coefficients, and accelerated weathering test reports, see the referenced ASTM G154 performance figure above.
Proven in Field
"We replaced 12 kilometres of unlined earth canal with FRP irrigation channels in a rice‑growing scheme. The water loss from seepage dropped by over 80%, and the channels have required no relining in six seasons. The local installation crew assembled the sections without cranes, which kept the project on schedule during the dry‑season window."
— Large‑Scale Irrigation Canal Retrofit
Discuss Your Irrigation Canal Requirements
WayTong supplies FRP irrigation channels in standard widths from 300 mm to 900 mm with custom cross‑sections and resin formulations. Contact our technical desk for hydraulic profiling, turnout gate specifications, and project‑specific installation scheduling.
Discuss Project RequirementsThese channels integrate into the WayTong FRP Infrastructure portfolio alongside drainage channels, trench covers, and culvert linings. For complete hydraulic and mechanical performance data, see the ASTM Standards Summary.
